ION9000
Enerji Kalite Analizörü
Dünyanın en yenilikçi, en gelişmiş ve en hassas enerji kalite analizörüdür.
[envira-gallery id="247"]

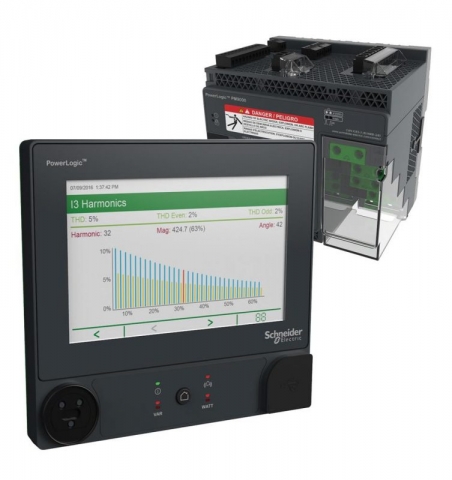

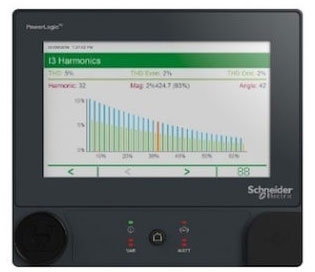

PowerLogic ION9000, dünyanın en yenilikçi, en gelişmiş ve en hassas enerji kalite analizörüdür.
Bağımsız test laboratuvarından 0.1S doğruluk sertifikası, üstün hassasiyeti, modüler tasarımı, esnek ION programlama özelliği ve gelişmiş enerji kalitesi analizi ile endüstriyel tesisler veya sağlık hizmeti tesisleri, veri merkezleri ve EDAŞ şebekeleri için ideal bir enerji kalite analizörüdür.
| Demand power P, Q, S Demand current I1, I2, I3, I4, I5 Peak demand power PM, QM, SM Hesaplanan aktif ve reaktif enerji (+/- W.h, +/- VAR.h) | |
| Montaj donanımı Uzak ekran Mounting instructions Uzak ekran adaptörü | |
| PowerLogic ION9000 | |
| Enerji ve güç kalitesi ölçüm cihazı | |
| Net metering Medium voltage High voltage Güç izleme WAGES ölçümü | |
| PowerLogic | |
| ION92040 |
TAMAMLAYICI
| 38 VA at 480 V AC <= 80 VA at 480 V | |
| 2 RS485 removable screw terminal block | |
| Mühürlenebilir kapakla korunur | |
| 8 digital 30 V AC/60 V DC | |
| 100 ms 6 cycles at 60 Hz 120 V AC typical 400 ms 24 cycles at 60 Hz 240 V AC typical 1200 ms 72 cycles at 60 Hz 480 V AC typical | |
| Gerilim (empedans 5 MOhm) 5 current (impedance 0.3 MOhm) | |
| IEC 61850 DLMS Modbus RTU at 2400...115200 bps 2-wire ION at 2400...115200 bps 2-wire DNP3 at 2400...115200 bps 2-wire Modbus TCP at 10/100 Mbit/s ION TCP at 10/100 Mbit/s DNP3 TCP at 10/100 Mbit/s Ethernet Modbus TCP/IP daisy chain at 10/100 Mbit/s DHCP DNS | |
| 160 mm | |
| Ethernet/seri | |
| DIN rail meter device Door cut-out remote display | |
| Class 0.1S active energy conforming to IEC 62053-22 Class 0.1 active energy conforming to IEC 61557-12 Class 0.1 active energy conforming to ANSI C12.20 Class 0.5S reactive energy conforming to IEC 62053-24 Class 0.1 current conforming to IEC 61557-12 Class 0.1 voltage conforming to IEC 61557-12 Class 0.1 active power conforming to IEC 61557-12 Class 0.5 power factor conforming to IEC 61557-12 | |
| Configuration change Olay kayıtları Anlık değerlerin minimumu/maksimumu Continuous logging or snapshot User login/logout Trend oluşturma/tahmin oluşturma Power outage User-definable data logs Olay kayıtları dizisi Veri kayıtları GPS senkronizasyon Saat damgası Alarm kayıtları | |
| Dalga biçimi yakalama Kesinti yönünün tespiti 63. harmoniğe kadar Toplam talep bozulması Toplam harmonik bozulma EN 50160 compliance checking Conforming to IEEE 519 harmonic limit Conforming to IEC 61000-4-30 : class A compliance reporting Up to the 127th harmonic with software Dip, swell and transient Half cycle data acquisition Conforming to IEEE 519 compliance reporting | |
| Voltage +/- 0.1 % Current +/- 0.1 % | |
| Döngü başına 1024 örnek | |
| Push historical data via mail TLS 1.2 Pass/fail report for IEEE 519 Pass/fail report for EN 50160 SEMI curve NEMA motor derating curve E-posta ile alarm bildirimi Viewing of captured waveform Web sayfası ITIC (CBEMA) curve | |
| Class III conforming to EN/IEC 62052-11 | |
| FTP/HTTP/HTTPS Device Profile Web Services (DPWS) DHCP client Hızlı Tarama Ağacı Protokolü (RSTP) | |
| 135.3 mm | |
| 1 A 5 A 20 A | |
| 1.5 kg | |
| 2 GB | |
| 90...480 V AC 45...66 Hz +/- 10 % 90...120 V AC 400 Hz +/- 10 % 110...480 V DC +/- 15 % | |
| 160 mm | |
| 3P + N + E | |
| 800 x 480 piksel | |
| Power quality summary SMTP e-posta bildirimi Compliant reports SNMP EcoStruxure Power Events Analysis Energy report | |
| Robust security logs Hardware metrology lock Enable/disable communication ports Syslog protocol support Port hardening | |
| 4 dijital çikislar 2 form C relay output output(s) | |
| 10/100BASE-TX 2 RJ45 | |
| Colour touchscreen Uzak LCD ekran | |
| Chemical Pharmaceutical Veri merkezi Energy Semiconductor Mining Sağlık | |
| 400...690 V III conforming to EN 61010-1 ed. 3 347...600 V III conforming to UL 61010-1 ed. 3 347...600 V III conforming to CSA C22.2 No 61010-1 ed. 3 | |
| Görünen güç toplam Görünen güç faz başına Aktif ve reaktif enerji Active and reactive power total Active and reactive power per phase Harmonic distorsion (I THD & U THD) Voltage sags and swells Current sags and swells Görünen enerji Gerilim Akım Frekans Güç faktörü toplam Güç faktörü faz başına | |
| 57...400 V AC 42...69 Hz faz ve nötr arasında 100...690 V AC 42...69 Hz fazlar arasında | |
| 50 Hz 60 Hz | |
| 0.01...20 A | |
| 20...450 Hz | |
| IRIG-B SNTP NTP PTP GPS |
ORTAM
| Kesinti bağışıklık testi 'e uygunIEC 61000-4-5 Elektrostatik deşarj bağışıklık testi 'e uygunIEC 61000-4-2 Immunity to impulse waves conforming to IEC 61000-4-12 EMC immunity conforming to IEC 62052-11 Immunity to radiated fields conforming to IEC 61000-4-3 EMC immunity conforming to IEC 61326-1 Surge withstand conforming to ANSI C37.90.1 Immunity to fast transients conforming to IEC 61000-4-4 EMC immunity conforming to IEC 61000-6-5 Conducted and radiated emissions class B conforming to EN 55032 Conducted and radiated emissions conforming to EN 55011 Surge withstand conforming to IEEE C37.90.1 Immunity to conducted disturbances conforming to IEC 61000-4-6 Immunity to magnetic fields at network frequency conforming to IEC 61000-4-8 Conducted and radiated emissions class B conforming to ICES-003 Immunity to conducted disturbances - test level: 2...150 kHz conforming to CLC/TR 50579 Conducted and radiated emissions class B conforming to FCC Part 15 Gerilim düşüşleri ve kesintileri bağışıklık testi 'e uygunIEC 61000-4-11 | |
| III | |
| IEC 61010-1 IEC 62053-23 UL 61010-1 IEC 61557-12 IEC 61850 IEC 62052-11 IEC 61326-1 ANSI C12.20 ANSI C37.90.1 IEC 61000-4-15 IEC 61000-4-30 IEC 62052-31 IEC 62053-22 IEC 62053-24 IEC 62586 | |
| ISO 9001 ISO 14000 | |
| 5...95 % | |
| UL type 12, front | |
| 0...3000 m | |
| Front : IP65 Rear : IP30 | |
| -25...70 °C | |
| -40...85 °C |
